Product Description
3 dBd, Omnidirectional Base Station Antenna 746 – 807 MHz Band
Product Specifications: Download PDF File
3 dBd, Omnidirectional Base Station Antenna 746 – 807 MHz Band
Additional Information
| Model | CXL 700-3SL |
|---|---|
| Antenna Type | Collinear, broad-band |
| Frequency | 746 – 807 MHz |
| Impedance | Nom. 50 Ω |
| Radiation | Omnidirectional |
| Polarization | Vertical |
| Gain | 5 dBi 3 dBd |
| Half Power Beamwidth | 30° |
| Bandwidth | 61 MHz |
| SWR | ≤ 1.5 |
| Max. Power | 500 W |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Temp. Range | -30°C → +70°C |
| Connector | N-female |
| Wind Surface | 0.033 m² / 0.36 ft² |
| Wind Load | 38 N @ 160 km / 99.42 mph. |
| Color | Marine white |
| Materials | Shroud: Polyurethane-coated glass fibre Mounting bracket: Seawater resistant aluminium, epoxy-coated Clamps: Stainless steel |
| Total Height | Approx. 0.8 m / 31.5 in. |
| Weight | Approx. 5.0 kg / 11.02 lb. |

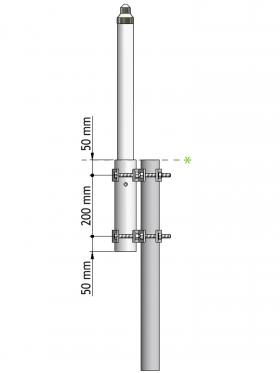

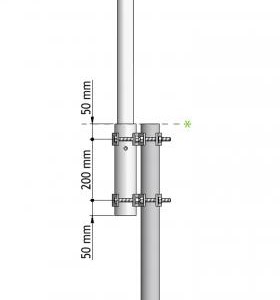

| Mounting | On 33 – 70 mm / 1.3 – 2.76 in. dia. mast tube |
